RL IMPEDANCE OR RC ADMITTANCE
Do you like this story?
PROPERTIES OF RL IMPEDANCE OR RC ADMITTANCE
1) Poles and zeros are alternating
2) Poles and zeros are simple and lie on the negative real
axis of the s-plane.
3)The critical frequency nearest to origin is a zero
4) The critical frequency farthest from origin is a pole
5)The residues of Y(s) at its poles are all negative and
real
6) The slope of YRC(σ) is positive and the slope of YRC(-σ)
is negative
7) YRC(∞)≥YRC(0)
Methods
for realising a RC IMPEDANCE OR RL ADMITTANCE function
1) Foster
form 1
2)

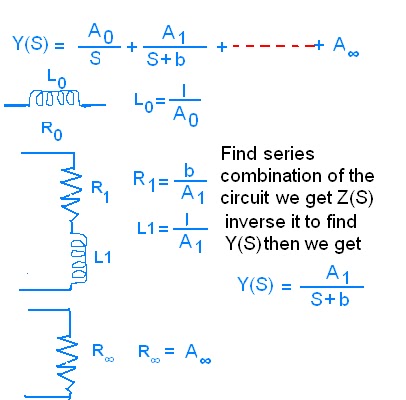

Foster form 2
3) Cauer
form 1
4)
Cauer form 2
FOSTER FORM 1
It is used to realize impedance function.
FOSTER FORM 1
It is used to realize impedance function.
